In Stock
$255.42
Gigabyte GA-B760M-AORUS-ELITE-AX, Micro-ATX, Intel LGA 1700, 4xDDR5, 2xM.2+4xSATA 6Gb/s, 2xPCIe, RAID, 1xHDMI, 1xDP, GbE LAN, Wireless AX+Bluetooth, 1xUSB-C, 4xUSB3.0, 4xUSB2.0, RGB
In Stock
$255.42$336.60Save: 24.12%
Quantity
Only 9 left in stock
In Stock
Freight Calculator
- •Brand: Gigabyte
- •Warranty: 3 Year
- •Model: 99X354476
- •Weight: 1

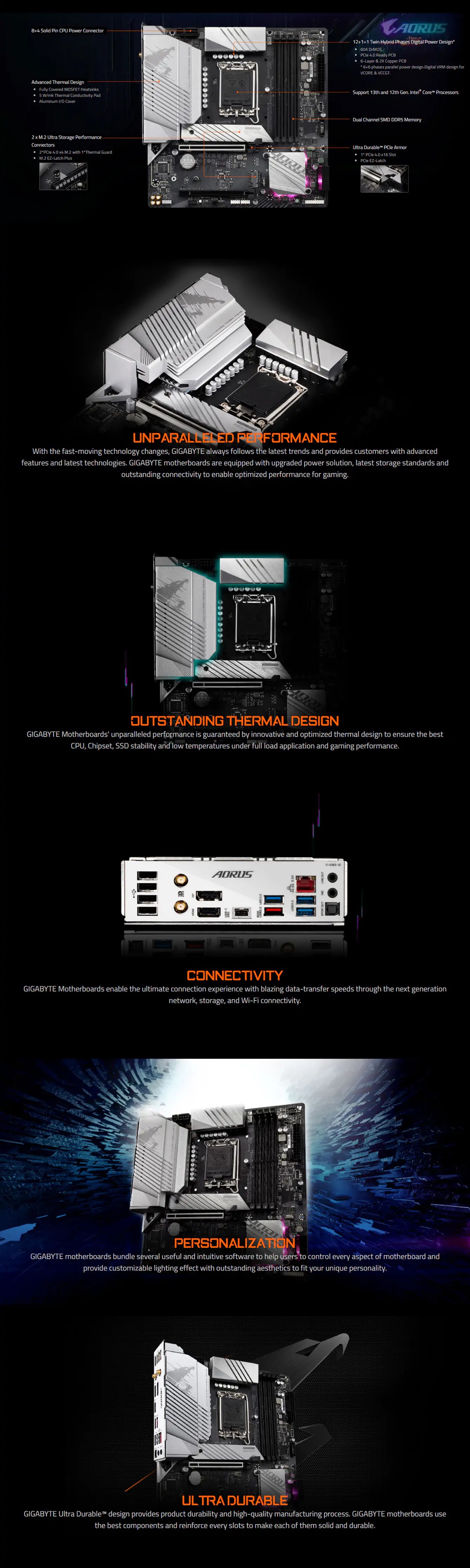

The Gigabyte GA-B760M-AORUS-ELITE-AX-D5 is a feature-packed DDR5 motherboard with LGA1700 socket, Intel B760 Express Chipset, Wi-Fi 6E, USB 3.2 Gen 2x2 support, and Windows 11 compatibility in a Micro ATX form factor. It supports up to 128GB of DDR5 RAM, PCIe 4.0 SSDs, and offers a range of connectivity options for modern setups. Ideal for PC enthusiasts, gamers, and content creators looking for a powerful and reliable motherboard for their next build.
Need Help or Found it Cheaper?
Chat with our experts for product advice or price matching on genuine written quotes.
|
CPU |
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors* L3 cache varies with CPU |
|
Chipset |
Intel® B760 Express Chipset |
|
Memory |
Support for DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
Onboard Graphics |
Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.) |
|
Audio |
Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
|
LAN |
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
|
Wireless Communication module |
Intel® Wi-Fi 6E AX211 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate (Actual data rate may vary depending on environment and equipment.) |
|
Expansion Slots |
CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) Support for AMD CrossFireX™ technology |
|
Storage Interface |
CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
|
USB |
Chipset: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 1 x USB 3.2 Gen 1 port on the back panel 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel |
|
Internal I/O Connectors |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |
|
Back Panel Connectors |
2 x SMA antenna connectors (2T2R) 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 2 Type-A port (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x HDMI port 1 x DisplayPort 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks |
|
I/O Controller |
iTE® I/O Controller Chip |
|
H/W Monitoring |
Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. |
|
BIOS |
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
Unique Features |
Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus |
|
Bundled Software |
Norton® Internet Security (OEM version) LAN bandwidth management software |
|
Operating System |
Support for Windows 11 64-bit Support for Windows 10 64-bit |
|
Form Factor |
Micro ATX Form Factor; 24.4cm x 24.4cm |
What are my payment methods
• Bank Transfer - No Fees
• Credit Cards - VISA, MasterCard 1.5% Handling Fee
• PayPal - 2.75% Handling Fee
Bank Transfer
In order to pay for your order by bank transfer, you must first complete the
checkout process as normal. Upon completion you will be issued with an invoice
for your order which will be processed once your payment clears. From here you
may log onto your internet banking and make a payment for the order amount to
the bank account listed below. Alternatively, you may visit your local branch,
fill out a Deposit Slip with the correct details using the information below
and process this transfer with the bank teller in person.
Bank: Westpac Banking
Corporation
Account Name: ZCOMPUTE PTY LTD.
BSB: 034108
Account Number: 606317
Please add your invoice number and name in the description area when placing your deposit. If you do not have the relevant details on hand, or are unable to add the description, please email or fax through a copy of your deposit receipt as soon as possible. Please note that your order will not be processed until the funds have successfully deposited into our bank account and the payment has been confirmed as received by our accounts department. This process takes 1 - 5 business days.
Credit Card
Zotim accepts all major credit cards - Visa,
Master Card and Debit Cards. Please note, credit card handling fees do apply as
follows: VISA/MasterCard at 1.5%. These fees are comprised of Merchant Service
fees, Terminals fees, fraud prevention costs that cannot absorb due to the
extremely lower than retail prices we offer.
Please note: Due to the rise of credit card fraud
and for your security all credit card orders will be subject to advanced
security checks. If your order does not meet our security check requirements,
you will be contacted and further credit card security procedures will be
implemented.
Shipping
We prefer to use couriers for shipping which include Couriers Please. Startrack and Toll Express.
The courier require a signature on delivery so please give a delivery address where someone will be available to sign for the parcel.
We can use Australia Post as well, however parcels sent through Australia Post are not insured for loss or damage.
How is shipping cost calculated?Shopping at zotim.com.au is all about how much you can save with our shipping methods. As a brief summary - if you buy more than 1 item, your shipping cost for the 2nd, 3rd & subsequent items will be less than the first item!
We can afford this mainly because the cost of the delivery driver travelling to your address is already covered by the first parcel delivery charge, so the remaining parcels are only charged by the additional weight.
Note that we aren't always able to add items to orders after the order is placed, so be sure to order everything you want in one go when you first checkout, to ensure the quickest possible processing of your order, and the lowest possible shipping cost. We also aren't able to merge orders - the above images show what is possible if all items from Order 1 and 2 are ordered on a single order, it does not infer that we can combine multiple orders (our system is unable to accommodate this at this time).
